M1 is a portable 5G pocket WiFi router, using UNISOC chipset. It supports global bands and has Asian/African, European/Middle east/Oceania versions to choose from.It is WiFi 802.11a/b/g/n/ac that supporting 10 different WiFi devices (laptops, iPhone, smartphone, iPad, tablet, gaming consoles and many more). Convenient for travelling! Up to 12 hours of working time including 5000 mAh battery.
Specification
Selling Point:
1.Durable Material: This portable internet hotspot with 5000mAh battery is made from premium and durable material, long service life.
2.High Stability: This portable internet hotspot guarantees network speed and stability, and does not rely on network cables.
3.Wireless Design: This wireless hotspot router is small in size and light in weight, connect your smart home without a network cable.
4.Increase Coverage: This SIM card router uses 5G Internet access via SIM card. Increase WiFi coverage area and eliminate network dead angle.
5.Wide Compatibility: Simply insert a standard SIM card, whether it is a mobile phone, laptop, desktop or tablet, you can easily connect to wifi (SIM card not included).
6.Support 8 to 10 Users: This 5G wireless router supports 8 to 10 users at a time, suitable for home, office and travel, etc.
Short Description:
M1 is a portable 5G pocket WiFi router, using UNISOC chipset. It supports global bands and has Asian/African, European/Middle east/Oceania versions to choose from.It is WiFi 802.11a/b/g/n/ac that supporting 10 different WiFi devices (laptops, iPhone, smartphone, iPad, tablet, gaming consoles and many more). Convenient for travelling! Up to 12 hours of working time including 5000 mAh battery.
Simply Introduction:

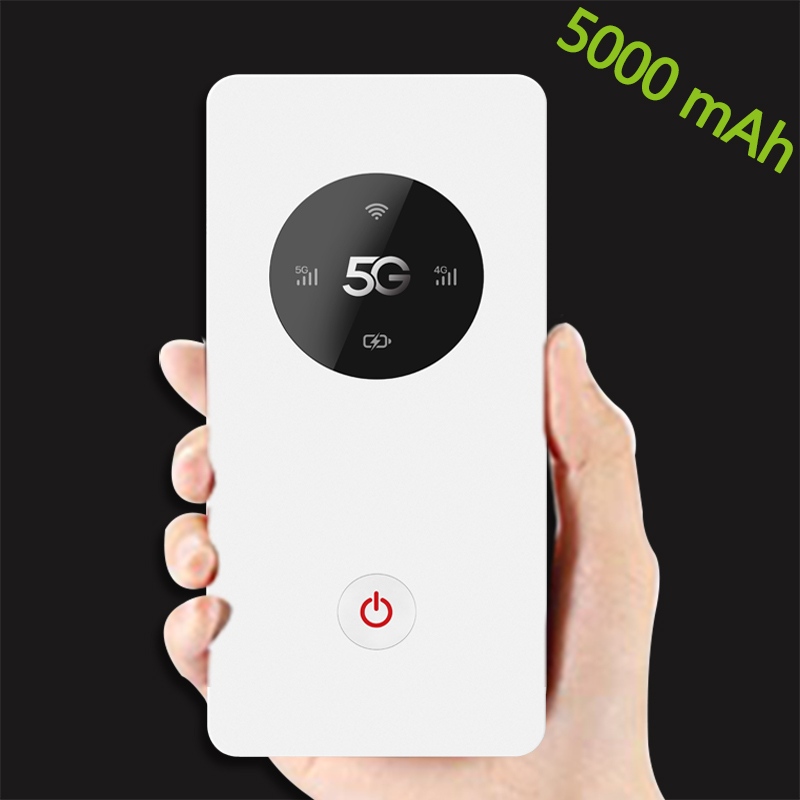

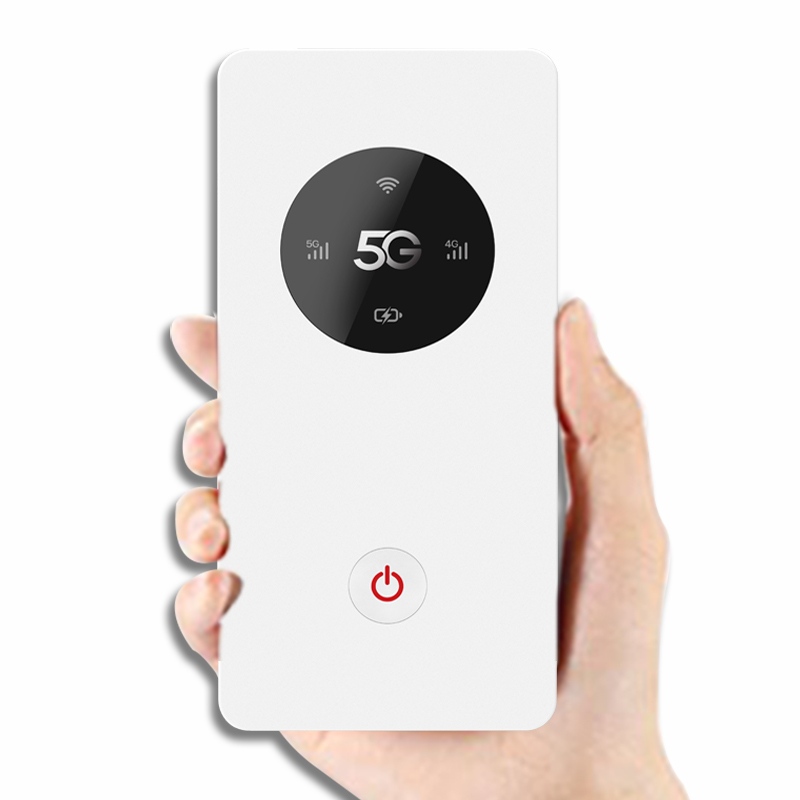

Getspeed M1 is a portable 5G mini router with a card slot and 5000mAh battery.With battery powered,use for indoor or outdoor without broadband place,put it into your pocket, enjoy WiFi anytime and anywhere. It comes with 4 LED indicators that allows you to check your network status, battery status,and more information. This mobile WiFi router provides up to 2Gbps（DL）/500Mbps（UL）. Providing smoothing gaming and internet surfing experience.
The router is compatible with SIM card bands at N1/N3/N28+N41/N78 (more frequency can be added)
Main features of the product:
● High Performance: Provides 5G high speed Internet access, supports main frequency bands in most countries and operators, provides WiFi hotspots, easily connect mobile phones and computers.
● RJ45 Ethernet Ports: it has a LAN port which can enable your Desktop computer access to internet via a network cable
● High Gain Antennas: This router has built in two high gain omnidirectional antennas, which have high transmission performance and can work well in a variety of complex environments.
● LED indicator:4 LED indicators for checking signal,battery, user connection etc.

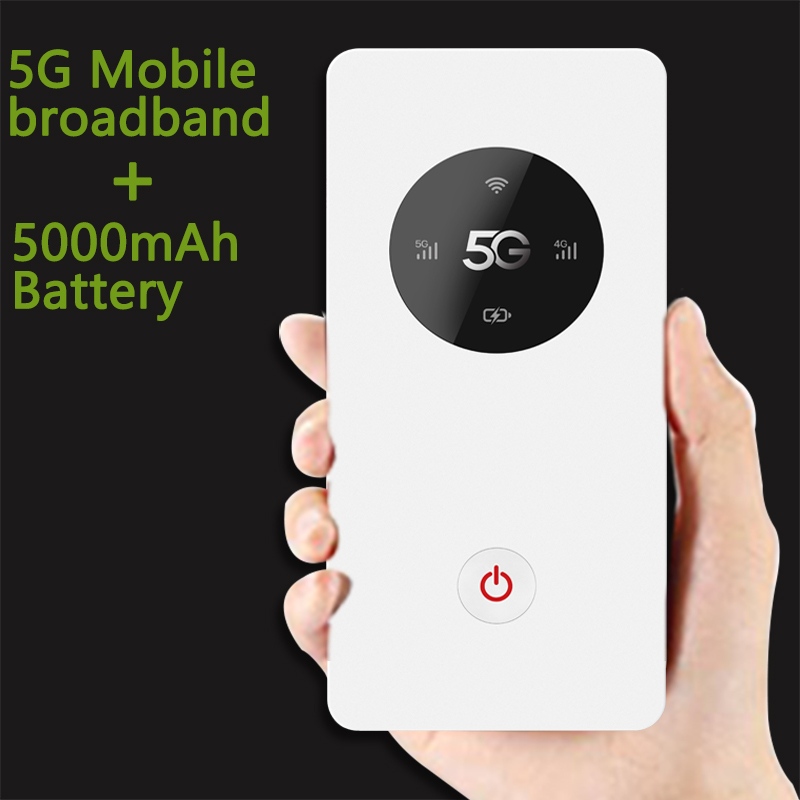

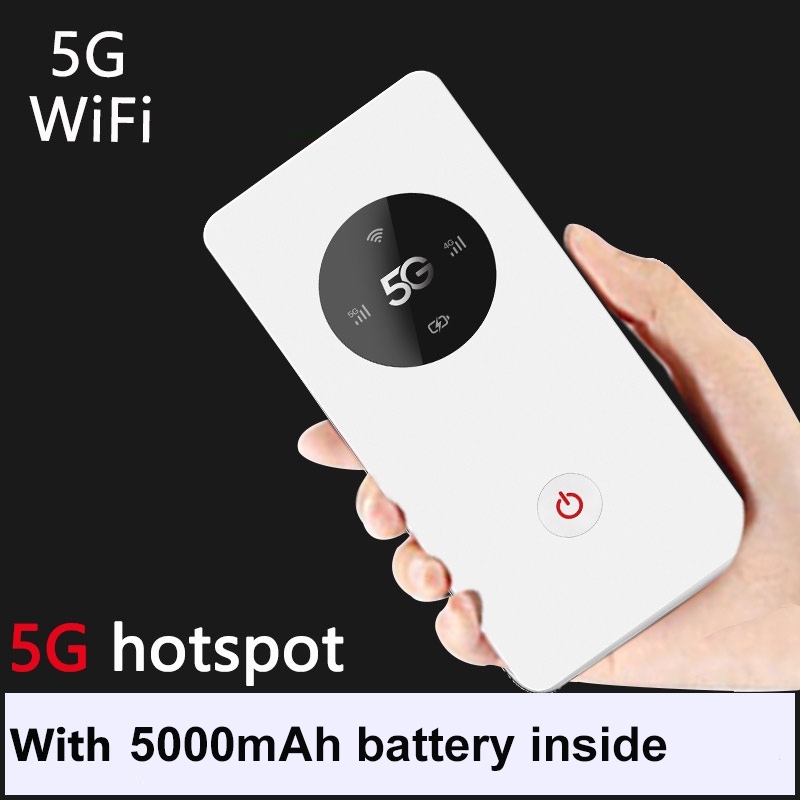

● 5000mAh Li-ion Battery: 5G Pocket WiFi router is powered by a 5000mAh rechargeable battery for indoor or outdoor areas without broadband, supports up to 12 hour working and 24 hour standby, put it in your pocket and enjoy WiFi anytime, anywhere.
● Lightweight and Portable: Portable WiFi router is lightweight, slim and compact design, easy for you to carry; Whether you are working at home or traveling, the 5G Pocket LTE router allows your WiFi to follow your footprints.
● Easy to Use: Portable WiFi router simply insert a Micro SIM card and you can easily connect to WiFi whether it's your cell phone, laptop, desktop or tablet. It can support 10 users at the same time.
5G WiFi Hotspot (MiFi) - M1
| CPU | UNISOC UDX710 | Dual core A55 1.35G | |
| Flash | RAM | 4Gb | SIP LPDDR4X |
| ROM | 2Gb | external NAND | |
| RF | 3GPP | R8,R9...,R15 | |
| Speed | 5G NR TDD | 2Gbps（DL）/500Mbps（UL） | |
| LTE TDD | 260Mbps（DL）/30Mbps | ||
| LTE FDD | 300Mbps（DL）/50Mbps | ||
| WCDMA | 384Kbps（DL）/384Kbps（UL） | ||
| HSUPA | 11Mbps（UL）（Category 7） | ||
| HSDPA | 42.2Mbps（DL）（Category 24） | ||
| LTE Antenna | 1T2R | 2 | |
| 5G Antenna | 1T4R | 4 | |
| WCDMA/HSPA | B1 | ||
| TDD-LTE | B34/38/39/40/41 | ||
| FDD-LTE | B1/B3/B5/B8 | ||
| CA | B41+B41 B39+B41 B1+B3 | ||
| 5G NR | FDD:N1/N3/N28 TDD:N41/N78 (more frequency can be added) | ||
| Output | Class 3 (24 dBm +1/-3 dB) : WCDMA frequency bands Class 3 (23 dBm ±2 dB): LTE frequency bands Class 3 (23 dBm ±2 dB): 5G NR frequency bands | ||
| WIFI | CPU | UMW2651 | |
| WIFI | 2.4GHz, 5.0GHz，802.11 a/b/g/n/ac up to 867Mbps | ||
| Users | 10 | ||
| WiFi Antenna | 2×2 | ||
| Antenna | 18dBm(Max) in 11b mode 16dBm(Max) in 11g mode 15dBm(Max) in 11n mode 15dBm(Max) in 11ac mode | ||
| Receiving sensitivity | MCS9: -63dBm@10% PER MCS7: -68dBm@10% PER 54M：-70dBm@10% PER 11M：-83dBm@8% PER 6M：-88dBm@10% PER 1M：-90dBm@8% PER | ||
| Speed | 11ac:867/780/650…65Mbps (Auto Rate Sensing) 11g:54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing) 11b:11/5.5/2/1 Mbps (Auto Rate Sensing) 11n:300 Mbps /…/6.5Mbps (Auto Rate Sensing) | ||
| IPV4 IPv6 | Support | ||
| FOTA | Support | ||
| ESIM | Support | ||
| Key | Power、WPS | ||
| Port | USB2.0，TYPE C | ||
| SIM | 1*NANO Slot; 3*ESIM(5*6) | ||
| Inpout | TypeC 5V/2A | ||
| LED | Power(three colors) | ||
| 4G signals(three colors) | |||
| 5G signals(three colors) | |||
| WIFI signals(green colors,blink for WPS) | |||
| others | ESD | touch 6k air10K | |
| Electrical surge | VBAT 200V ,VBUS 300V | ||
| Battery | 5000mAh | ||
| Working temperature | -20 ~ +60℃ | ||
| Storage temperature | -30 ~ +70℃ | ||

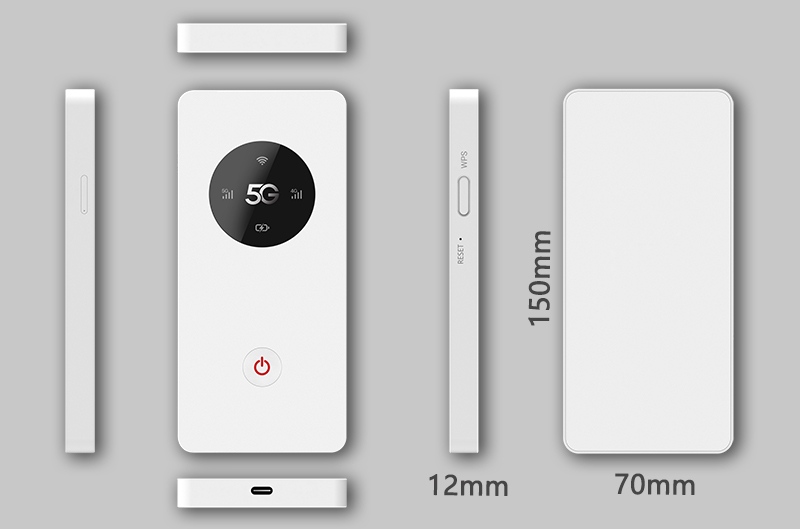

| Dimension | 150×70×12mm | ||
